ZBeam

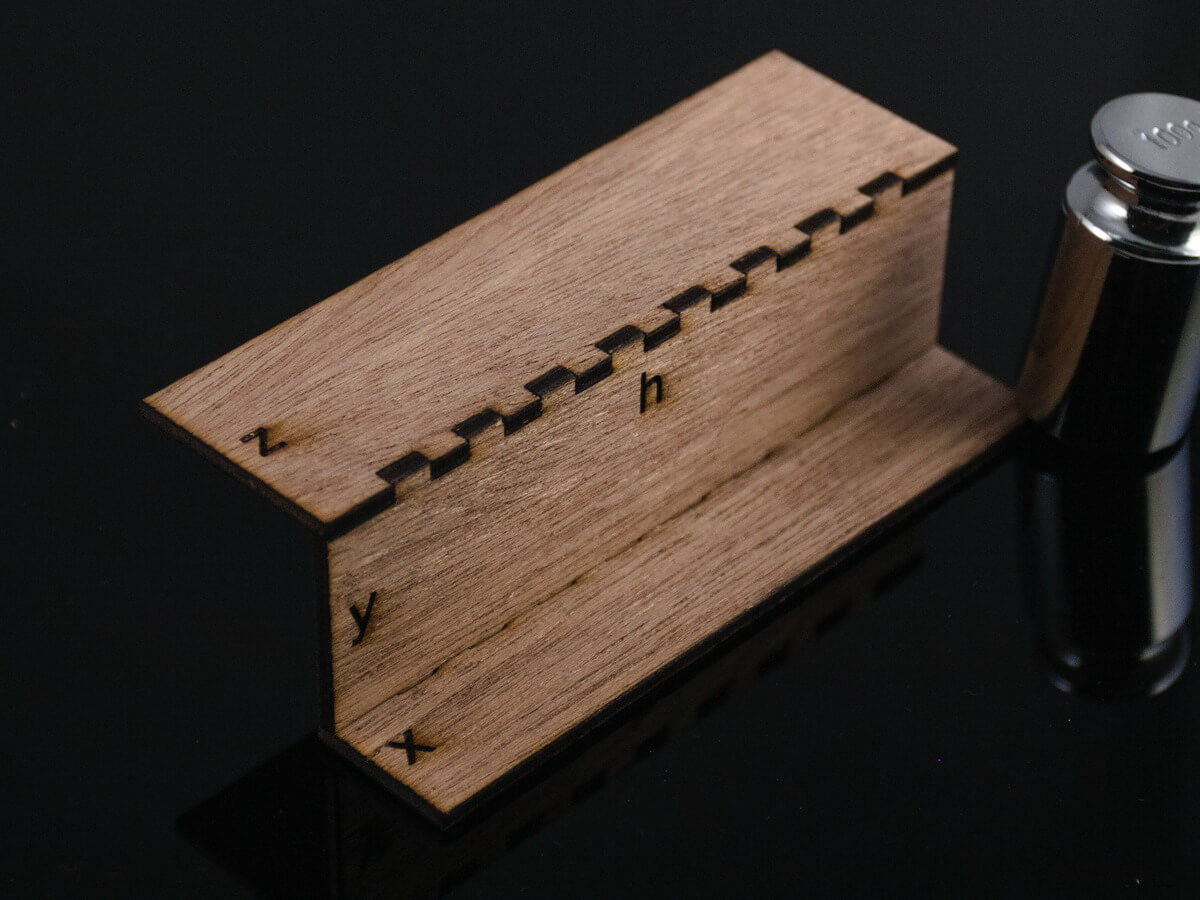

Z-Beam (or U-Beam): three pieces joined at right angles

Configurações para Encaixes Dentados

estilo

style of the fingers

espaços circundantes

space at the start and end in multiple of normal spaces

bottom_lip

height of the bottom lips sticking out (multiples of thickness) FingerHoleEdge only!

Largura Borda

space below holes of FingerHoleEdge (multiples of thickness)

extra_length

extra material to grind away burn marks (multiples of thickness)

dedo

width of the fingers (multiples of thickness)

liberdade de movimento

extra space to allow finger move in and out (multiples of thickness)

espaço

space between fingers (multiples of thickness)

largura

width of finger holes (multiples of thickness)

ZBeam Settings

Borda Superior

tipo de borda para a borda superior

Borda Inferior

tipo de borda para a borda inferior

inner width in mm

profundidade interna em mm

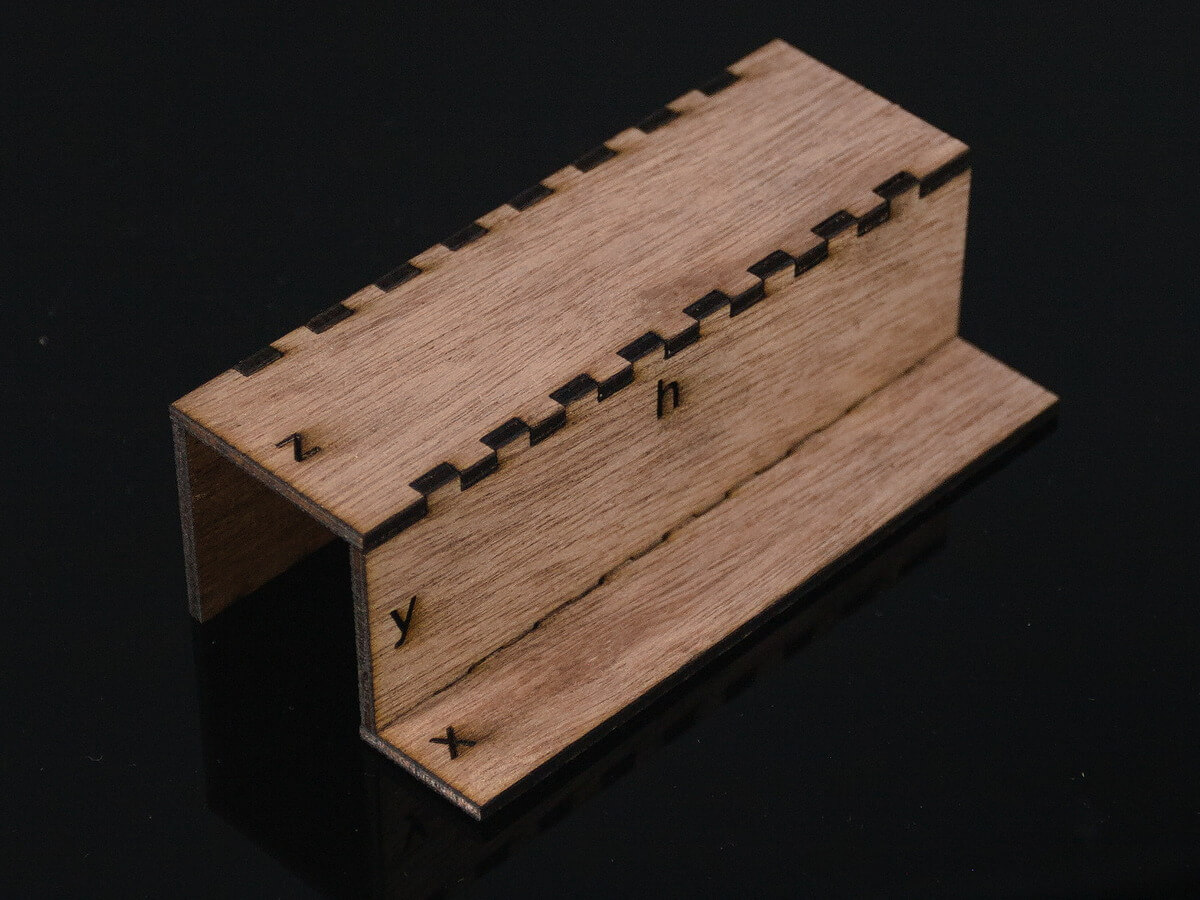

flanged_ubeam

Add a fourth piece to make a U-Beam with a flange

altura interna em mm (a menos que a opção de medida externa esteja selecionada)

exterior

treat sizes as outside measurements 🛈

Configurações Padrão

espessura

thickness of the material (in mm) 🛈

gravar

burn correction (in mm)(bigger values for tighter fit) 🛈

formato

format of resulting file 🛈

labels

label the parts (where available)

referência

print reference rectangle with given length (in mm)(zero to disable) 🛈

tabulação

width of tabs holding the parts in place (in mm)(not supported everywhere) 🛈

qr_code

Add a QR Code with link or command line to the generated output

inner_corners

style for inner corners 🛈

espaçamento

spacing around parts (multiples of thickness [: extra space in mm]) 🛈

debugar

print surrounding boxes for some structures 🛈
